0.6/1kV 2C+E XLPE insulated orange circle cable complied with AS/NZS standard
Application: for mains, sub-mains and sub-circuits unenclosed, enclosed in conduit, buried direct or in underground ducts or buildings and industrial plants where not subject to mechanical damage, suitable for gland.
Description:
Standard: AS/NZS 5000.1
Voltage: 0.6/1kV
Conductor: plain annealed copper class2 as per AS/NZS 1125
Insulation: X-90 as per AS/NZS 3808
Sheath: 5V-90
Core identification: red black green/yellow
Sheath color: orange or others as per clients
Date sheet 1:
core*cross-section
mm2 | conductor no. | nominal insulation thickness
mm | nominal sheath thickness
mm | approx. overall diameter
mm | approx. weight
kg/lm |
| phase | earth | phase | earth |
| 2*15.+1.5E | 7 | 7 | 0.7 | 0.5 | 1.8 | 9.8 | 114 |
| 2*2.5+1*2.5E | 7 | 7 | 0.7 | 0.6 | 1.8 | 11.1 | 159 |
| 2*4+1*2.5E | 7 | 7 | 0.7 | 0.6 | 1.8 | 11.9 | 196 |
| 2*6+1*2.5E | 7 | 7 | 0.7 | 0.6 | 1.8 | 12.9 | 242 |
| 2*10+1*4E | 7 | 7 | 0.7 | 0.6 | 1.8 | 14.9 | 352 |
| 2*16+1*6E | 7 | 7 | 0.7 | 0.7 | 1.8 | 16.9 | 501 |
| 2*25+1*6E | 7 | 7 | 0.9 | 0.7 | 1.8 | 20.2 | 714 |
| 2*35+1*10E | 7 | 7 | 0.9 | 0.7 | 1.8 | 22.0 | 948 |
| 2*50+1*16E | 19 | 7 | 1.0 | 0.7 | 1.8 | 24.8 | 1268 |
| 2*70+1*25E | 19 | 7 | 1.1 | 0.9 | 1.8 | 28.4 | 1788 |
| 2*95+1*25E | 19 | 7 | 1.1 | 0.9 | 1.9 | 32.9 | 2376 |
| 2*120+1*35E | 19 | 7 | 1.2 | 0.9 | 2.0 | 36.5 | 3002 |
| 2*150+1*50E | 30 | 19 | 1.4 | 1.0 | 2.1 | 40 | 3723 |
| 2*185+1*70E | 37 | 19 | 1.6 | 1.1 | 2.3 | 45.0 | 4764 |
| 2*240+1*95E | 48 | 19 | 1.7 | 1.1 | 2.4 | 50.6 | 6261 |
| 2*300+1*120E | 61 | 19 | 1.8 | 1.2 | 2.6 | 55.6 | 7848 |
date sheet 2
core*cross-section
mm2 | min. bending radius
mm | current rating | electrical characteristics |
underground
A | in the air
A | voltage test | max. DC resistance at 20℃
Ω/km |
| 2*15.+1.5E | 147 | / | / | | 13.6 |
| 2*2.5+1*2.5E | 167 | 39 | 28 | 3.5kV/5minutes | 7.41 |
| 2*4+1*2.5E | 179 | 51 | 37 | 3.5kV/5minutes | 4.61 |
| 2*6+1*2.5E | 194 | 64 | 47 | 3.5kV/5minutes | 3.08 |
| 2*10+1*4E | 224 | 86 | 65 | 3.5kV/5minutes | 1.83 |
| 2*16+1*6E | 254 | 110 | 84 | 3.5kV/5minutes | 1.15 |
| 2*25+1*6E | 303 | 140 | 110 | 3.5kV/5minutes | 0.727 |
| 2*35+1*10E | 330 | 170 | 135 | 3.5kV/5minutes | 0.524 |
| 2*50+1*16E | 372 | 205 | 170 | 3.5kV/5minutes | 0.387 |
| 2*70+1*25E | 426 | 250 | 215 | 3.5kV/5minutes | 0.268 |
| 2*95+1*25E | 494 | 300 | 265 | 3.5kV/5minutes | 0.193 |
| 2*120+1*35E | 548 | 345 | 310 | 3.5kV/5minutes | 0.153 |
| 2*150+1*50E | 600 | 385 | 350 | 3.5kV/5minutes | 0.124 |
| 2*185+1*70E | 675 | 435 | 405 | 3.5kV/5minutes | 0.0991 |
| 2*240+1*95E | 759 | 500 | 480 | 3.5kV/5minutes | 0.0754 |
| 2*300+1*120E | 834 | 565 | 555 | 3.5kV/5minutes | 0.0601 |
inthe air:when working temperature is 90degree,and the ambient temperature is 40degree.
underground:when soil thermal resistitivity is 1.0k.m/w,working temperature is 90 degree and the ambient temperature is 25 degree.
Package
We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

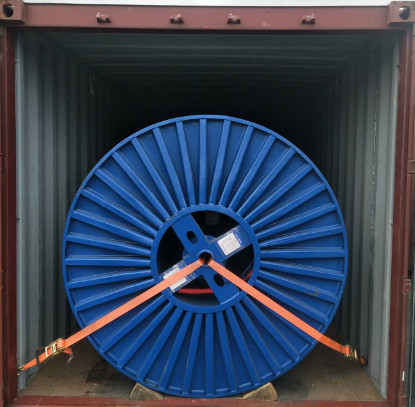

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
